SHEAR FORCE & BENDING MOMENT

Shear force: - Sharing force at any point along a loaded beam is algebraic sum of all the vertical forces acting at any one side of the point.

A graphical representation of the variation of the shear force along the length of the beam is known as Shear Force diagram.

Sign convention: -

When the section move from left side to right side -

                  Upward forces are taken as (+ve)

                  Downward forces are taken as (-ve)



When the section move from right side to left side -

                  Downward forces are taken as (+ve)

                  Upward forces are taken as (-ve)

Sign convention of Shear Force
Fig.1 | Sign convention of Shear Force

 OR, Share force causing clockwise moment (+ve)

     Share force causing anti-clockwise moment  (-ve)



[Note – Sign convention may change, there is no effect on result]



Bending Moment: - Bending moment at any section or point of a beam is the algebraic sum of the moments about the section or point of all the vertical forces acting at any one side of the section or point.

Graphical representation of the variation of the BM along the length of the beam is known as bending moment diagram.

Sign convention: -

When the section move from left side to right side: -

                 Clockwise moments are taken as (+ve)

                  Anti-clockwise moments are taken as (-ve)



When the section move from right side to left side: -

                 Anti-clockwise moments are taken as (+ve)

                  Clockwise moments are taken as (-ve)


Sign convention of Bending Moment
Fig.2 | Sign convention of Bending Moment

 Relation between bending Moment, shear force and rate of loading: -

Rate of change of shear force (or slope of the share force curve) is equal to intensity of loading.

i.e. dF/ dX = w

Rate of change of bending moment is equal to share force.

i.e. dM/ dX = F

Types of beam:

Cantilever: - One end fixed and another in free.

Cantilever Beam
Fig.3 | Cantilever Beam

Simply supported beam: - The ends of a beam are made to freely rest on a support.

Simply Supported Beam
Fig.4 | Simply Supported Beam

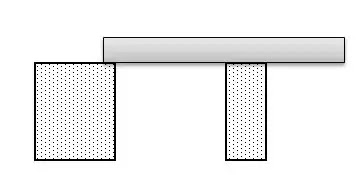

Overhanging beam: - A beam having its end portion extended beyond the support.

Overhanging Beam
Fig.5 | Overhanging Beam

A beam may be overhanging on one side or both side.

Fixed beam: -The Beam is fixed at both ends.

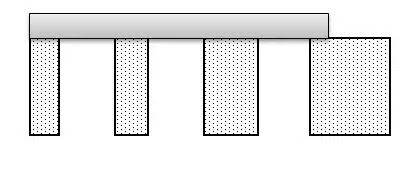

Continuous beam: -A beam supported on more than two supports is known as continuous beam.

Continuous Beam
Fig.6 | Continuous Beam

 Type of loading:

Concentrated or point load: - A load which is acting at a point of a beam is called Point Load

Point Load
Fig.7 | Point Load

Distributed load: - A load which spread over a beam at certain length or entire length is called distributed load.

Uniformly Distributed Load: - It is a distributed load in which load is spread in such a manner that intensity of load per unit length is constant throughout the length, up to which loading is spread.

Uniformly Distributed Load
Fig.8 | Uniformly Distributed Load

Magnitude of UDL is equal to the area of load distribution diagram and it will acts at the centroid of the diagram.

Uniformly Varying Load: - It is a distributed load in which load is spread over a beam in such a manner that it varies uniformly on each unit length.

Uniformly Varying Load
Fig.9 | Uniformly Varying Load

Magnitude of UDL is equal to the area of load distribution diagram and it will acts at the centroid of the diagram.



  • Bending moment is maximum, where share force is zero or changes the sign.
  • Point of contraflexure or inflection- where the bending moment changes sign.
  • In a simply supported beam the BM is zero where SF is maximum and vice versa.
  • The variation of shear force between two sections is equal to the area under the load distribution diagram.
  • The variation of bending moment between two sections is equal to the area under Shear Force diagram.

Shape of share force diagram and bending moment diagram in different loading condition: -

Load

Shear Force diagram

Bending moment diagram

Point loads

Straight line

Inclined line

UDL

Inclined line

Parabolic curve

UVL

Parabolic curve

Cubic curve



Shear Force and Bending Moment for beam:

Cantilever beam with a point load at its free end:

Cantilever beam with a point load at its free end
Cantilever beam with a point load at its free end

SFx = W

SFmax = W

BMx = W.x

BMmax = W.L (At the fixed end)





Cantilever beam with uniformly distributed load over its entire length:

Cantilever beam with uniformly distributed load over its entire length
Fig.11 | Cantilever beam with UDL

SFx = w.x

At x = 0; SFmin = 0

At x = L; SFmax = w.L

BMx = (w.x2)/2

At x = 0; BMmin = 0

At x = L; BMmax = (w.L2)/2

Cantilever beam with uniformly varying load over its entire length (Zero at its free end and maximum at its fixed end):

Cantilever with UVL
Fig. 12 | Cantilever with UVL

SFx = ½.x.(w/L).x [1/2.base. height]

At x = 0; SFmin = 0

At x = L; SFmax = (w.L)/2

BMx = (w.x2/2L). (x/3) [SFx. Distance from CG]

At x = 0; BMmin = 0

At x = L; BMmax = (w.L2)/6

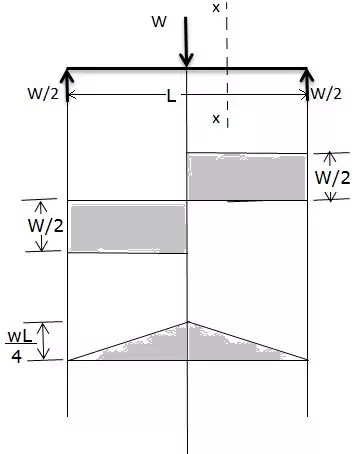

Simply supported beam with a point load at its mid-point: -

Simply supported with point load
Fig.13 | Simply supported with point load

Simply supported beam with uniformly distributed load over its entire length: -

Simply supported with UDL

Fig.14 | Simply supported with UDL
